Temperature Monitoring of Wooden Pellets

Application serves to guard temperatures of wooden pellets. Gained temperatures are shown on the web www.BaWiT.eu and simultaneously evaluated for SMS alarm sending.

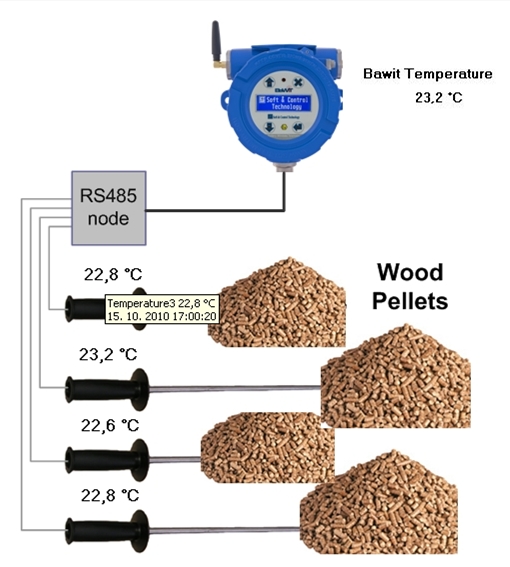

Application consists of one BaWiT –B and four temperature sensors in special version. They are molded into stainless tubes with 14mm diameter and 1,5 m length. The tubes have handles for better manipulation. The handle also serves as cable grommet. This solution offers IP68 protection. Sensors in such design are dedicated for sticking into the pile of wooden pellets.

Measured values are being archived and transfered to the web www.BaWiT.eu. If temperature exceeds +75°C, SMS alarm is sent. Every day SMS status with measured temperatures is sent to corresponding phone numbers.
